The Slingr platform can be extended through legacy services. A legacy service is a piece of software that runs along the app and provides additional functionality. For example there could be a legacy service that provides cryptographic algorithms so your app can use them.
However the most common usage for legacy services is to connect to other apps, specially other cloud apps. That’s what you’ll find in our official legacy services registry, where there are legacy services to easily integrate your apps with services like Slack, Google Calendar or SparkPost.

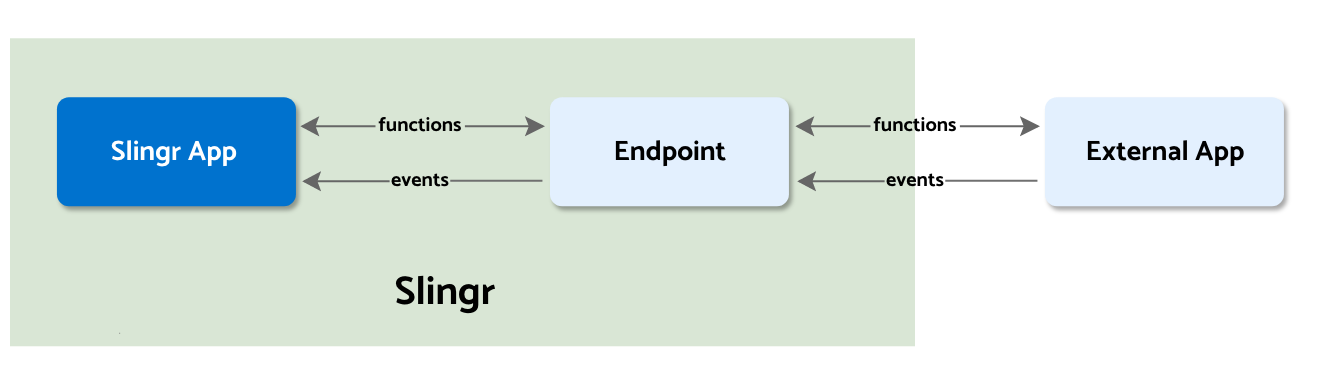

As shown in the diagram above apps can use the API provided by the endpoint to send messages to the other app. For example, it could be a method to get available calendars in an external calendar service:
var calendars = app.endpoints.calendarEndpoint.findCalendars();
sys.logs.info('calendars: '+JSON.stringify(calendars));
When an endpoint is added to an app, the API for it will be accessible through functions defined in the scripts under the
namespace app.endpoints.<endpointName>, as can be seen in the example above. You should check the
documentation for each endpoint to know what’s the API.
The other part of the API of the endpoint are events, which are messages coming from the endpoint to the app. These events can be captured by endpoint listeners so you can do something upon arrival. For example you could create a listener to catch an event when a new contact is created on Google Contacts and do something like this:
sys.logs.info('new contact from google contacts: '+JSON.stringify(event.data));
app.contacts.createContactInApp(event.data);
So legacy services will extend the platform in two ways:
- A new API under the namespace
app.endpoints.<endpointName>that can be accessed through scripts - Events that can be caught using endpoint listeners
Some legacy services will also provide a webhook URL where you can receive an async response from your endpoint. These can be handled using endpoint listeners so the app can act upon a received response. You can find more information on how to use legacy services here.
Configuration of legacy services
Legacy services can be added to an app in the app builder, in section Model > Legacy services. Here you can
set the configuration of legacy services which basically consists of the type of endpoint, name and some
legacy services specific settings like API keys, users, passwords, etc.
By default, the latest version of the endpoint will be selected, and if the endpoint is updated it will always deploy the latest version. If you select a specific version of the endpoint you can select the upgrade policy to automatically upgrade to compatible versions or to fix the version you previously selected.
You can find more information about the configuration of legacy services here.
Lifecycle of legacy services
When you add a new endpoint in the app builder you are just defining its configuration. In order to deploy
the endpoint you need to push changes (it will be deployed only if the initial status is Deployed). When
that happens the endpoint will be deployed and from there the status of the endpoint should be handled
from the app monitor.
In the app monitor, in the section Legacy services, you will be able to restart, undeploy and deploy legacy services.
The lifecycle of legacy services is independent from the app. This means that when you restart an endpoint your
app keeps working and the other way around. If events happened in the middle operations will be retried
so no events are lost.
If you don’t want an endpoint any longer, you can remove it from the app builder and the endpoint will be removed when changes are pushed. Remember to manually delete usages of an endpoint in scripts if you are going to delete it.
Create your own legacy services
Finally it is possible to create your own legacy services to extend what the platform can do and connect to other services that aren’t included in the official legacy services. Learn more about that here.
